For LSEG Data chain.py, example using platform.deployed, getting A18: Service unknown.

mark.sinner

The connection is to RTC. I see in a post need: \*rtc\*defaultJsonServiceId, I believe in RTC rtc.cnf.

Is this correct ? How to use chain.py example to connect to local rtc ?

Jirapongse

@mark.sinner

Thank you for reaching out to us.

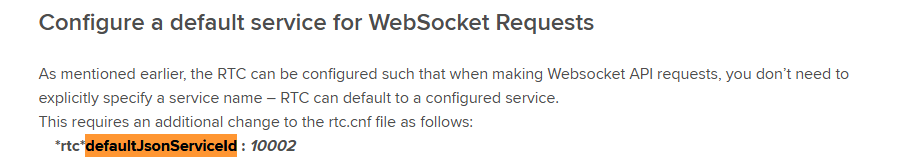

If item requests don't have the service name property, it will use the service from the *rtc*defaultJsonServiceId configuration. Please refer to the Testing Real-time Streaming applications with Docker & Refinitiv Real-Time Connector (part 2) article.

Where did you get the chain.py example?

wasin.w V3

Hello @mark.sinner

You can specify the service name in the item request message as follows:

Example: service name is ELEKTRON_DD

{

"ID":2,

  "Key":{

    "Name":"VOD.L",

    "Service": "ELEKTRON_DD"

  }

}

mark.sinner

The example is from LSEG Data Python:

Example.DataLibrary.Python/Examples/1-Access/EX-1.01.07-Chains.ipynb at lseg-data-examples · LSEG-API-Samples/Example.DataLibrary.Python

I don't see a way to specify the Service other than the rtc config. Trying below gets error with service= or Service=:
chn = ld.discovery.Chain(name="0#USTSY=TWEB",Service="IDN_RDF")

      ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

TypeError: Chain.init() got an unexpected keyword argument 'Service'

Code:

import os
import lseg.data as ld
from lseg.data.discovery import Chain
import datetime
from IPython.display import display, clear_output
import logging.config

def display_data(data, instrument, stream):
clear_output(wait=True)
current_time = datetime.datetime.now().time()
print(current_time, "- Data received for", instrument)
display(data)
ld.open_session(config_name='./lseg-data.config.json')

chn = ld.discovery.Chain(name="0#USTSY=TWEB",Service="IDN_RDF")
print(chn.constituents)
print(chn.summary_links)
ld.get_data(chn, ['BID', 'ASK'])

ld.close_session()

Jirapongse

@mark.sinner

To connect to RTC, you need to use the platform.deployed session with the following configurations.

            "deployed": {

                "app-key": "YOUR APP KEY GOES HERE!",

                "realtime-distribution-system": {

                    "url" : "YOUR DEPLOYED HOST:PORT GOES HERE!",

                    "dacs" : {

                        "username" : "YOUR DACS ID GOES HERE!",

                        "application-id" : 256,

                        "position" : ""

                    }

                }

            }

For example:

            "deployed": {
                "app-key": "",
                "realtime-distribution-system": {
                    "url" : "127.0.0.1:15000",
                    "dacs" : {
                        "username" : "api",
                        "application-id" : 256,
                        "position" : ""
                    }
                }
            }

Then, you can use the EX-2.02.06-Pricing-StreamingChain.ipynb example. For example:

chain = pricing.chain.Definition(name="0#USTSY=TWEB", service="ELEKTRON_DD").get_stream()
chain.open(with_updates=False)
chain.close()
print(chain.constituents)
